CP5512E Express

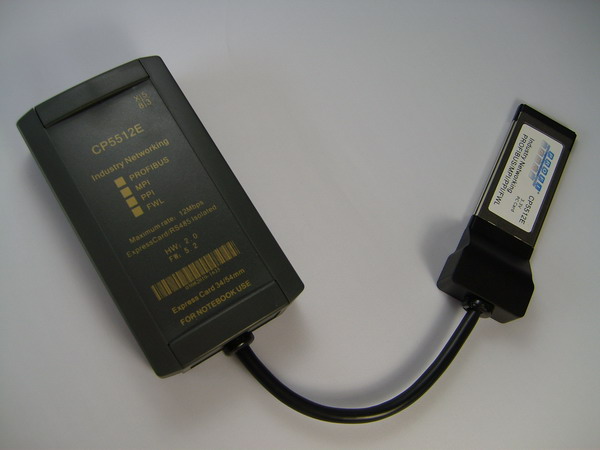

CP5512 EXPRESS

Laptop ExpressCard PROFIBUS Communication Card

Buy it Now, only USD $475



Introduction:
Nowadays the laptops have eliminated the PCMCIA slot,but adopt the ExpressCard slot.So we especially develop the CP5512 EXPRESS for ExpressCard laptop.
The function of our CP5512 EXPRESS is the totally same as Siemens original CP5512 except they use on different laptop interfaces.It’s the isolated PROFIBUS/MPI/PPI/FWL communication card specially for laptop, use iCoupler Magnetic Coupling isolators to replace the optocoupler,with small  dimension, wide temperature range,and have anti-lightning and surging protective circuit and resumption of Overcurrent protection circuit on the RS485 interface, all use industrial IC in order to apply to wider temperature range, is used to achieve PROFIBUS/MPI/PPI/FWL communication connection between laptop and SIMATIC.
CP5512 EXPRESS also can be used on PCI-E slot of desktop computer after the PCI-E to ExpressCard converter, the function is same as Siemens CP5611,CP5621.
CP5512 EXPRESS support hot plug and plug and play. Perfect isolation circuit and interface protective circuit make you at ease to use it.

Communication service:
PROFIBUS-DP master station class 1 and 2
PROFIBUS-DP slave and SOFTNET-DP slave
MPI/PPI/FWL communication
S7 communication with SOFTNET-S7
S5-compatible communication (SEND/RECEIVE based on the FDL interface) with SOFTNET-D or SOFTNET-S7

CP5512 EXPRESS is suitable for the following version or above version softwares:
STEP7  V5.2
SOFTNET-S7  V6.1
SOFTNET-DP, SOFTNET-DP slave from V6.1
STEP 7-Micro/WIN from V3.2 SP4
ProTool®, ProTool/Pro® V6.0 SP2
NCM PC from V5.2
SIMATIC PDM V5.2 SP1



Technical Specification:

Transmission rate: 9.6Kbps～12Mbps,the corresponding largest communication distance accord with PROFIBUS standard.
Interface:connect PROFIBUS/MPI/PPI,isolated 9 pin Sub-D connector.
Isolated voltage:1000VDC
Interface protection:have anti-lightning and surging protection(Ipp=100A 10/700us,4KV) on the RS485 interface.ITU-TK20/21,VDE 0433 standard. ±15KV ESD protection. Overcurrent protection with  restoration function：RS485 port can withstand up to 60V voltage caused by continuous over-current.
Standard working voltage:3.3 VDC
power：1.0W
working temperature：-20～+75℃
size：adapter:length* width * height(mm)：123×68×30,cable length:  25CM
weight：150g
