LOGO!USB-CABLE:USB isolated cable for Siemens LOGO!
USB optoelectronic isolated cable for Siemens LOGO!,2.5 meters,with communication indicator.
LOGO! USB-CABLE is a programming cable which use the USB interface to achieve the serial connection and the conversion of peripheral port signal. Under the control of computer operation,simulating the computer’s USB interface to traditional serial(commonly known as COM port),thus using the current programming software,communicating software and monitoring software.The work power of the cable comes from USB port and programming port of LOGO! controller.
USB-CABLE is photoelectric isolated,can be applied to LOGO! Controller,especially the industrial fields with greater interference and easily damaged communication port. All kinds of protection measures in the circuit give permission to the safe operation of the system.

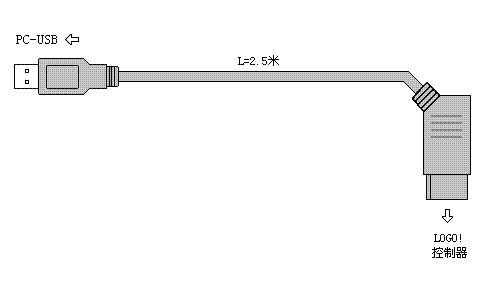

LOGO!USB-CABLE’ s chart appearance:
USB-CABLE’ chart appearance:
Characteristics and specifications:
● Support USB-CABLE operating system:Windows2000/Windows XP(do not support WinNT4/95/98/Me/DOS)
● Support USB-CABLE programming software version:LOGO! Soft V4.0 and above
● Fully compatible with standard USB V2.0
● Power supplied by USB bus and the programming port of LOGO! Controller.
● Optical isolation voltage:1000VDC
● Support UART data format:Data:7、8,stop bit:1、2,check:odd/even/no parity
● Each PC only supports one USB cable
● Working temperature:-20~+75℃
● Cable length:2.5m,color:black
Applications:
USB-CABLE programming cable can only be used under the device of USB. After completing the driver installation,In the Windows Device Manager will come up the COM port of USB-CABLE programming cable,just in the programming of software or other software applications,selecting the COM port.And the follow applyment is exactly the same as the traditional programming cable.
Long-distance communications:
USB-CABLE programming cables do not support the long-distance communications,for long-distance communications,you should choose programmable cable LOGO! PC-CABLEport controller of RS232 with FS-485G interface converters. communication distance of which could reach 2 miles.(9600bps)
Note: The maximum extension of the USB cable could reach 5 meters.
