6ES7972-0CB20-0XA0:USB adapter for S7-300,S7-400 PLC

Market price: $450 USD Our Price: $94 (USD) €76.14 (EUR) £63.92 (GBP) $114.68 (CAD) $141 (AUD)
Transport: Worldwide zhoutgtt@hotmail.com SKYPEthistiny
Product Description


USB/MPI+:USB isolated Siemens S7-300/400 PLC Programming adapter

$94.08
Buy It Now



optoelectronic isolated USB/MPI,Siemens S7-300/400 PLC Programming adapter cable,3 meters,with communication indicator,can replace Siemens 6ES7 972-0CB20-0XA0,automatically adjust the communication speed  from 19.2Kbps to 115.2Kbps for the PC port,automatically adjust the communication speed from 19.2Kbps to 187.5Kbps for the MPI interface.It doesn't support profibus function.

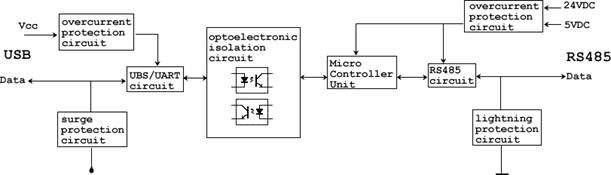

USB/MPI+ is the optoelectronic isolated adapter for industrial design. There is anti-surging& anti-lightning protection circuit for the USB and RS485 interface. It support hot plug. It’s suitable for the communication between Siemens S7-300/400 series PLC or other equipments with MPI interface and computer. In particular, it applies to the strong interfere industrial scene and the safeguard in the circuit guarantees the safely running of the system.

USB/MPI+ programming cable simulate USB port as traditional serial port (usually COM3), which enables existing programming software(STEP 7) to communicate through simulated traditional port and PLC devices.

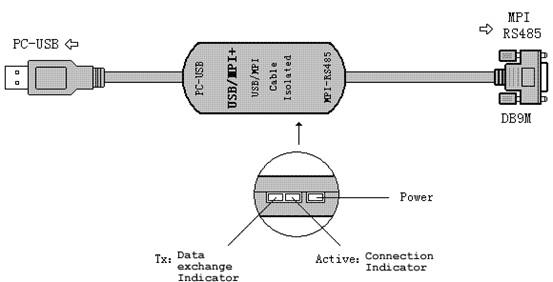

Outline configuration:

signals definition of the RS485-Block (DB9M) of the USB/MPI +

pin

signal

Description

1

NC

No use

2

M24V

24VDC power negative

3

B

RS485 signals positive

4

RTSAS

Data reception control

5

GND

RS485 Signal Ground

6

NC

No use

7

P24V

24VDC power positive

8

A

RS485 signals negative

9

RTS_PG

Data sent control




The status of the indicator

Indicator

Normally on

twinkle

OFF

Power

Power normal

Fault

Fault or Not connected to power

Active

Online status

Transmission of data

Not online

Tx

Fault

Send data

No data transmission



Features and technological index:

 Support Windows2000/Windows XP

 Support STEP7 V5.2 and higher

 Fully compatible with USB V1.1 and USB V2.0

 Power supply by both USB main line and MPI programming port(Total 1W).with Overcurrent Protection and Surge Protection

 High optoelectronic isolation voltage up to 1000VDC

 The USB port design with surge protection .The RS485 port design with overcurrent protection and lightning protection(500W)

 Baud rate of Com port on PC: 19.2Kbps~115.2Kbps

 Baud rate of MPI port on PLC: 19.2Kbps~187.5Kbps

 Support long distance communication up to 1000m

 Working temperature -20~+75'C

 Length 3 meters.Color:black

 One pc supports one USB programming cable only

 Usage:

USB device drivers should be installed before using USB/MPI+ programming cable.  After completing Driver installation, the corresponding COM port for the USB/MPI+  programming cable will be displayed in the “Device Manager” of Window. The step next is just to choose this COM port in the programming software and other application software and keep other communication parameters as in the Default settings. And the following steps are exactly the same as in the traditional programming cables with RS232 interfaces. Here are requested to indicate that "USB" option in the local communications interface setting which the software is not support to the programming cable.

If the COM port in the programming software with "*" symbols, such as "* COM3", it’s shown that the COM port have faults. Quit the software and plug a USB plug or re-install the USB driver.

Please note that Siemens COM port in programming software is up to support the option to COM8.But the ports more than COM8 are able to choose but in fact can not be used!

STEP7 software settings:
    Enter the main interface of STEP7 programming software (SIMATIC Manager), click on the "Set PG / PC Interface…" option under "Options" menu into the PG / PC interface settings.

1, Double-click on "PC Adapter (MPI)" to set the parameters of COM port and MPI port. The adapter does not support "PC Adapter (PROFIBUS)" option.

2, Click on "Local Connection" option to set the parameters of COM port, correct choose the COM port in the equipment manager after the driver of USB / MPI + USB has been installed, select the 19200 bps or 38400 bps as the baud rate of COM Communication. USB / MPI + will automatically adapt to the choice of baud rate.

3, Click "MPI" to set the parameters of MPI interface adapter options, baud rate can be set to 187.5 Kbps, or 19.2 Kbps, USB / MPI + adapter will automatically adapt to the MPI port of the PLC baud rate. Other parameters set as default.

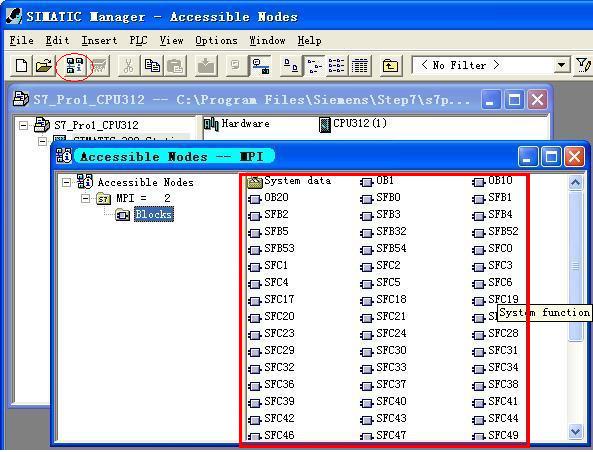

4, On-line test can access the points: USB / MPI + connect the MPI port of the S7-300/400PLC with the computer's USB port. Click on the main menu interface, as shown in a red circle button. If the data in red box is shown as the picture, the on-line test has pasted. As so far, the setting has completely finished. It can do all Operation such as upload, download ,monitoring of the procedures and other operations.

Long-distance communications:

For USB/MPI+, the largest communication distance is up to 1000m at the communication speed of 187.5Kbps. It needs to splice 120ohm terminal resistance between 3 and 8 pin on the RS485 port(DB9 Male) to eliminate signal reflection, and connect 24VDC power between 7 and 2 pin. But requires one PFB-G for each PLC.

    Please Note: USB interface cable cannot be extended.
